View Manual: Data to Application Model

To inform stakeholders regarding the affinity (or relationship) between Data Subjects and applications in an enterprise that is needed to inform the development, integration and deployment of software solutions.

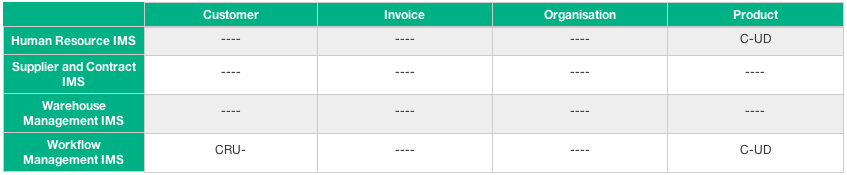

A model that defines the interaction (e.g. create, read, update, delete) between applications and data.

Guidelines for the modelling requirements

• Name and Description must be completed for all classes shown
• If no additional slots are indicated, then just name and description are required
• Mandatory slots are shown in red, these are required for the view to work
• Mandatory slots with an option, i.e. Individual Role OR Group Role, are shown in green, these are required for the view to work
• Optional slots are shown in black. The report will work without these but there may be some blank fields.
• The "classified as" slot is automatically completed except where noted

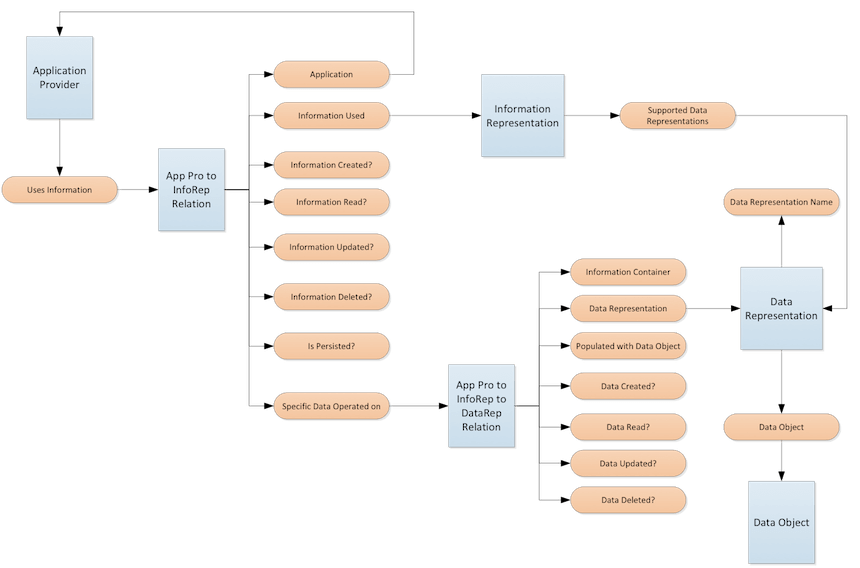

Top Level

Navigation	Essential Class	Additional Slots	Notes
Application/ Logical	Application Provider	Uses Information	To complete the following fields click CREATE on this slot
		Uses Information – Application	Automatically completed
		Uses Information – Information Used?
		Uses Information – Information Created?
		Uses Information – Information Read?
		Uses Information – Information Updated?
		Uses Information – Information Deleted?
		Uses Information – Is Persisted?	Should be checked
		Uses Information – Specific Data Operated on	To complete the following fields click CREATE on this slot
Application Logical	Application Provider cont.	Specific Data Operated on - Information Container
		Specific Data Operated on - Data Representation
		Specific Data Operated on - Populated with Data Object
		Specific Data Operated on - Data Created?
		Specific Data Operated on Data Read?
		Specific Data Operated on - Data Updated?
		Specific Data Operated on - Data Deleted?
Information/Conceptual	Information Representation	Supported Data Representations
Information/Logical	Data Representation	Data Representation Name
		Data Object
Information/Logical	Data Object
